AC Series
(8-18 kVA)

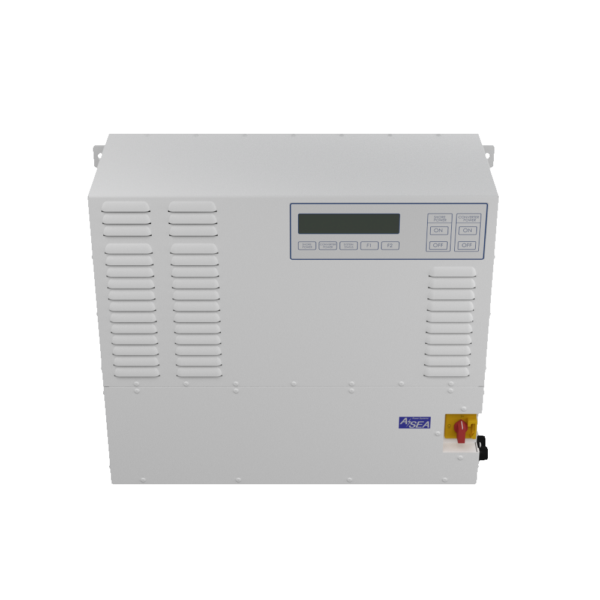

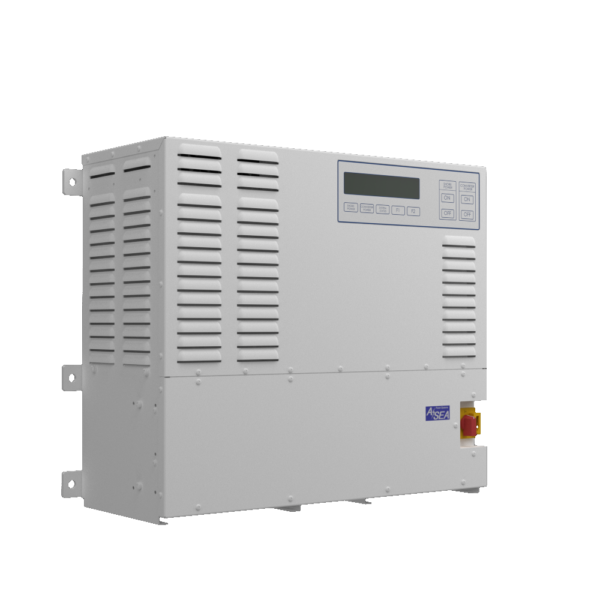

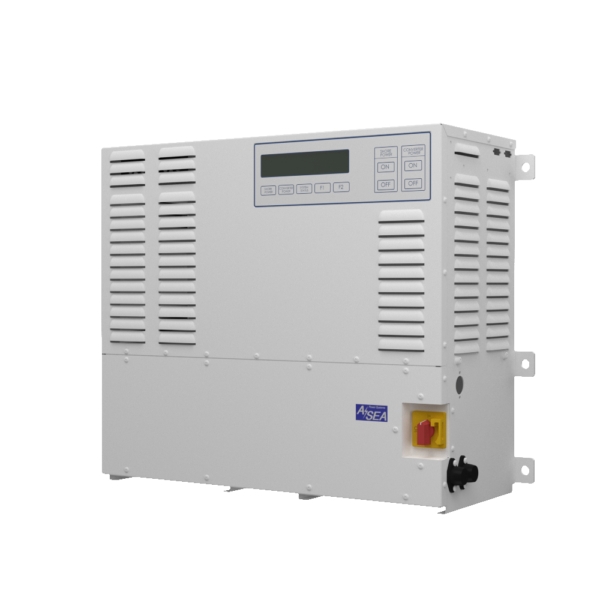

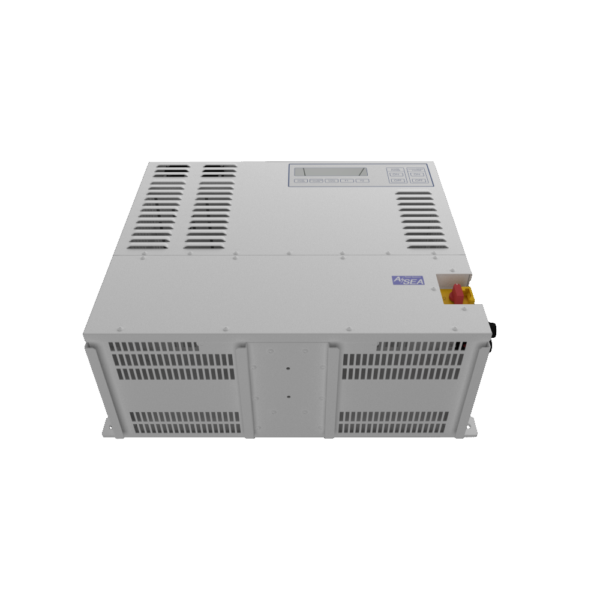

The Standard Series is customizable to fit virtually any space. Enclosure options two piece, wall hugger, and foot locker variations. Made from stainless steel, the unit is durable, reliable, and less susceptible to electromagnetic interference. Every unit is equipped with an isolation transformer to protect against galvanic corrosion, polarization, and fault current electrocution.
In addition to the basic function of power conversion, these converters provide the user with a sophisticated power analysis and monitoring capacity. Various displays are selected through a long-life, sealed membrane switch panel. All front panel information is available through the serial port for remote display, status and diagnostics.
Features
- Auto-Restart from shore brownout or blackout
- Conformal coated printed circuit boards
- Front panel display console
- Minimal harmonic distortion
- Reverse polarization prevention
- Galvanic corrosion protection
- Global support network
- Precision regulation
COMMONLY INSTALLED ON
Dual Conversion Technology
Precision regulation and minimal harmonic distortion
Stainless Steel Enclosure
Powder coated for ultimate durability and protection

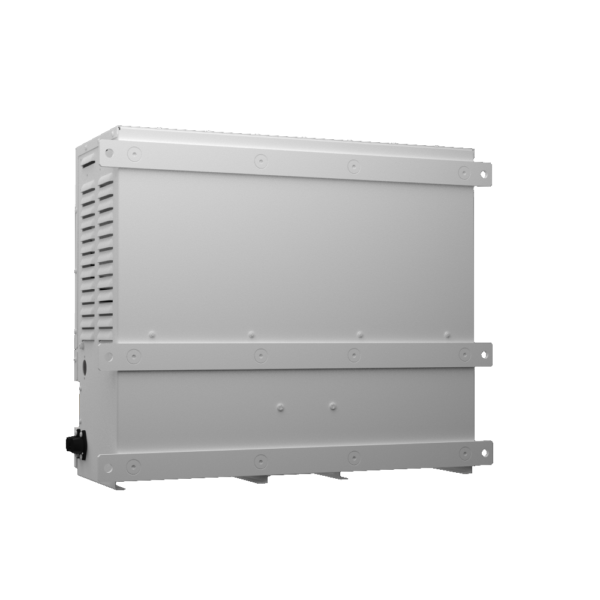

Bulkhead Mounting
Flexibility and ease of installation
SPECIFICATIONS
Model | AC08 | AC081 | AC08-3L | AC08-3H |
Part Number |
601000 |
N/A |
N/A |
N/A |
Input Power Form |
Single |
Single |
Single |
Single |
Input Voltage |
170-520 V |
170-520 V |
170-260 V |
330-520 V |
Input Frequency |
40–70 Hz |
40–70 Hz |
40–70 Hz |
40-70 Hz |
Power Factor |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
Shore Cord Input |
Single |
Single |
Single |
Single |
Output Power Rating |
8 kVA |
8 kVA |
8 kVA |
8 kVA |
Upgradeability |
12 kVA |
12 kVA |
12 kVA |
12 kVA |
Output Power Form |
Split |
True Single |
Split |
Split |
OUTPUT VOLTAGE |
110/220, 115/230, 120/240, 230, 240 V |
110, 115, 120 V |
110/220, 115/230, 120/240 V |
110/220, 115/230, 120/240 V |
Output Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
Efficiency |
87% @ rated load |
87% @ rated load |
87% @ rated load |
87% @ rated load |
Cooling |
Air |
Air |
Air |
Air |
Mounting |
Bulkhead |
Bulkhead |
Bulkhead |
Bulkhead |
Series |
AC |
AC |
AC |
AC |
Enclosure Style |
Standard |
Standard |
Standard |
Standard |
Legacy Enclosure |
N/A |
N/A |
N/A |
N/A |
Weight |
104 kg / 229 lbs |
104 kg / 229 lbs |
104 kg / 229 lbs |
104 kg / 229 lbs |
Height |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
Width |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
Depth |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
Model | AC12 | AC121 | AC12-3L | AC12-3H |
Part Number |
601001 |
601005 |
601002 |
601003 |
Input Power Form |
Single |
Single |
Single |
Single |
Input Voltage |
170-520 V |
170-520 V |
170-260 V |
330-520 V |
Input Frequency |
40–70 Hz |
40–70 Hz |
40–70 Hz |
40-70 Hz |
Power Factor |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
Shore Cord Input |
Single |
Single |
Single |
Single |
Output Power Rating |
12 kVA |
12 kVA |
12 kVA |
12 kVA |
Upgradeability |
N/A |
N/A |
N/A |
N/A |
Output Power Form |
Split, Single |
True Single |
Split |
Split |
OUTPUT VOLTAGE |
110/220, 115/230, 120/240, 230, 240 V |
110, 115, 120 V |
110/220, 115/230, 120/240 V |
110/220, 115/230, 120/240 V |
Output Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
Efficiency |
88% @ rated load |
88% @ rated load |
88% @ rated load |
88% @ rated load |
Cooling |
Air |
Air |
Air |
Air |
Mounting |
Bulkhead |
Bulkhead |
Bulkhead |
Bulkhead |
Series |
AC |
AC |
AC |
AC |
Enclosure Style |
Standard |
Standard |
Standard |
Standard |
Legacy Enclosure |
N/A |
N/A |
N/A |
N/A |
Weight |
104 kg / 229 lbs |
104 kg / 229 lbs |
104 kg / 229 lbs |
104 kg / 229 lbs |
Height |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
50.8 cm / 20.0 in |
Width |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
63.7 cm / 25.1 in |
Depth |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
25.4 cm / 10.0 in |
Model | AC15 | AC15-3L | AC15-3H |
Part Number |
603000 |
603004 |
603005 |
Input Power Form |
Single |
Three |
Three |
Input Voltage |
170-520 V |
170-260 V |
330-520 V |
Input Frequency |
40–70 Hz |
40–70 Hz |
40–70 Hz |
Power Factor |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
Shore Cord Input |
Single |
Single |
Single |
Output Power Rating |
15 kVA |
15 kVA |
15 kVA |
Upgradeability |
18 kVA |
18 kVA |
18 kVA |
Output Power Form |
Split |
Split |
Split |
OUTPUT VOLTAGE |
110/220, 115/230, 120/240, 230, 240 V |
110/220, 115/230, 120/240 V |
110/220, 115/230, 120/240 V |
Output Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
Conversion Efficiency |
91% @ rated load |
91% @ rated load |
91% @ rated load |
Cooling |
Air |
Air |
Air |
Mounting |
Bulkhead |
Bulkhead |
Bulkhead |
Series |
AC |
AC |
AC |
Enclosure Style |
Standard |
Standard |
Standard |
Legacy Enclosure |
N/A |
N/A |
N/A |
Weight |
136 kg / 300 lbs |
136 kg / 300 lbs |
136 kg / 300 lbs |
Height |
56.9 cm / 22.4 in |
56.9 cm / 22.4 in |
56.9 cm / 22.4 in |
Width |
79.0 cm / 31.1 in |
79.0 cm / 31.1 in |
79.0 cm / 31.1 in |
Depth |
30.5 cm / 12.0 in |
30.5 cm / 12.0 in |
30.5 cm / 12.0 in |
Model | AC18 | AC18-3L | AC18-3H |
Part Number |
603001 |
603002 |
603003 |
Input Power Form |
Single |
Single |
Single |
Input Voltage |
170-520 V |
170-260 V |
330-520 V |
Input Frequency |
40–70 Hz |
40–70 Hz |
40–70 Hz |
Power Factor |
>0.95 @ rated load |
>0.95 @ rated load |
>0.95 @ rated load |
Shore Cord Input |
Single |
Single |
Single |
Output Power Rating |
18 kVA |
18 kVA |
18 kVA |
Upgradeability |
N/A |
N/A |
N/A |
Output Power Form |
Split |
Split |
Split |
OUTPUT VOLTAGE |
110/220, 115/230, 120/240, 230, 240 V |
110/220, 115/230, 120/240 V |
110/220, 115/230, 120/240 V |
Output Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
Conversion Efficiency |
91% @ rated load |
91% @ rated load |
91% @ rated load |
Cooling |
Air |
Air |
Air |
Mounting |
Bulkhead |
Bulkhead |
Bulkhead |
Series |
AC |
AC |
AC |
Enclosure Style |
Standard |
Standard |
Standard |
Legacy Enclosure |
N/A |
N/A |
N/A |
Weight |
136 kg / 300 lbs |
136 kg / 300 lbs |
136 kg / 300 lbs |
Height |
56.9 cm / 22.4 in |
56.9 cm / 22.4 in |
56.9 cm / 22.4 in |
Width |
79.0 cm / 31.1 in |
79.0 cm / 31.1 in |
79.0 cm / 31.1 in |
Depth |
30.5 cm / 12.0 in |
30.5 cm / 12.0 in |
30.5 cm / 12.0 in |
Output Form | 8 kVA | 12 kVA | 15 kVA | 18 kVA |
1 Ø, 110 V |
73 A |
110 A |
137 A |
164 A |
1 Ø, 115 V |
70 A |
105 A |
131 A |
157 A |
1 Ø, 120 V |
67 A |
100 A |
125 A |
150 A |
1 Ø, 220 V |
37 A
|
55 A |
69 A |
82 A |
1 Ø, 230 V |
35 A |
53 A |
66 A |
79 A |
1 Ø, 240 V |
34 A |
50 A |
63 A |
75 A |
2 Ø, 110/220 V |
37 A |
55 A |
69 A |
82 A |
2 Ø, 115/230 V |
35 A |
53 A |
66 A |
79 A |
2 Ø, 120/240 V |
34 A |
50 A |
63 A |
75 A |
